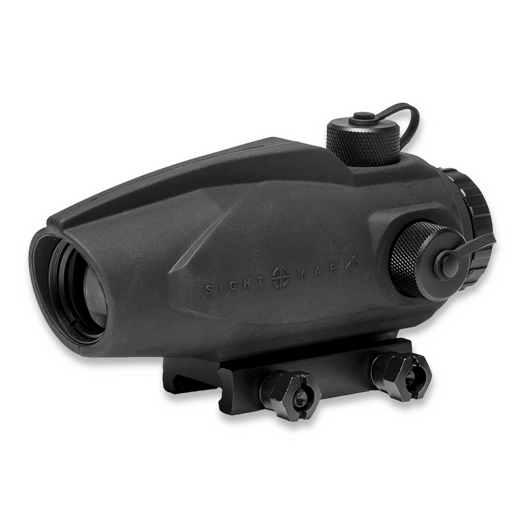

Sightmark Wolfhound 3x24 HS-223 Prismatic Weapon Sight

Reticle, Type HS-223
Reticle, Color Red/Green
Reticle, Illuminated yes
Setting, Brightness 5
Finish/Color Matte black
Magnification 3 x
Diameter, Objective Lens 24 mm
Diameter, Eyepiece 27 mm
Diameter, Exit Pupil 8 mm
Eye Relief 2.83 / 72 in/mm
Field of View 10.48 m @100m
Field of View 31.6 ft @100yd
Field of View 6 degree
Diopter Adjustment +3 to -3
Parallax Setting 100 yds
Windage Range of Adjustment 160 MOA
Elevation Range of Adjustment 160 MOA
Windage & Elevation, Lock no
MOA Adjustment 1/2 MOA
Maximum Recoil 800 g's
Battery Type CR2032
Battery Life (high) 200 - (low) 4000 hours
Battery Voltage 3 V
Sunshade no
Nitrogen Purged yes
Shockproof yes
Fog Proof yes
IP Standard IP68 (submergible to 3m)
Body Material Aluminum - 6061 / Rubber
Material, Lens glass
Lens Coating Fully multicoated AR green
Mount Type Picatinny
Operating Temp -40 to 122 F / -40 to 50 C
Length 5.9 / 150 in/mm
Width 2.8 / 72 in/mm
Height 3 / 77 in/mm
Weight 17.2 oz
